Intuitive and practical design

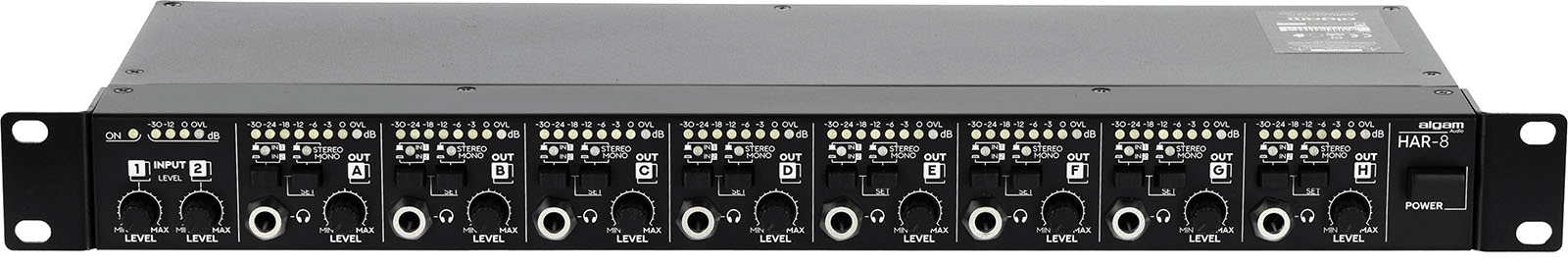

The HAR-8 is designed to be easy to use, even in the most demanding working environments. It features a clear, intuitive interface, with easily accessible control buttons on the front panel. Each headphone output has its own dedicated source selector, a mono/stereo switch to convert the output signal to stereo if required, and an 8-segment LED VU meter, graduated from -30 to 0 dB, for continuous monitoring of each channel’s output level.
For even greater convenience, the HAR-8 features a headphone output for each channel on the front and back, which can be used simultaneously to broadcast the signal from one channel to 2 listeners at the same time.
Professional ruggedness and reliability
Designed to withstand the rigors of intensive use, the HAR-8 is built with quality components and benefits from robust construction. Its 1U rack-mountable format makes it easy to integrate into any professional audio system, while its 6.35 mm TRS connectors ensure a solid, reliable connection in all circumstances.
– 8 headphone amplifier channels (A – H) with individual TRS jack outputs
– Front and rear headphone outputs, wired in parallel ( simultaneous operation of the 2 headphone outputs of a channel is possible, but requires headphones of at least 60 ohms)
– 8 direct TRS jack inputs for injecting individual stereo mixes
– 2 main stereo inputs to send 2 independent sources to the headphone sections
– Headphone output controls: level, mono/stereo selector, input selector 1/2
– Main input controls: individual input 1 and 2 levels
– 8-segment output LED meters, 4-segment input LED meters
– POWER button and status LED on front panel
